1

操 控 类

Headset. Control Category

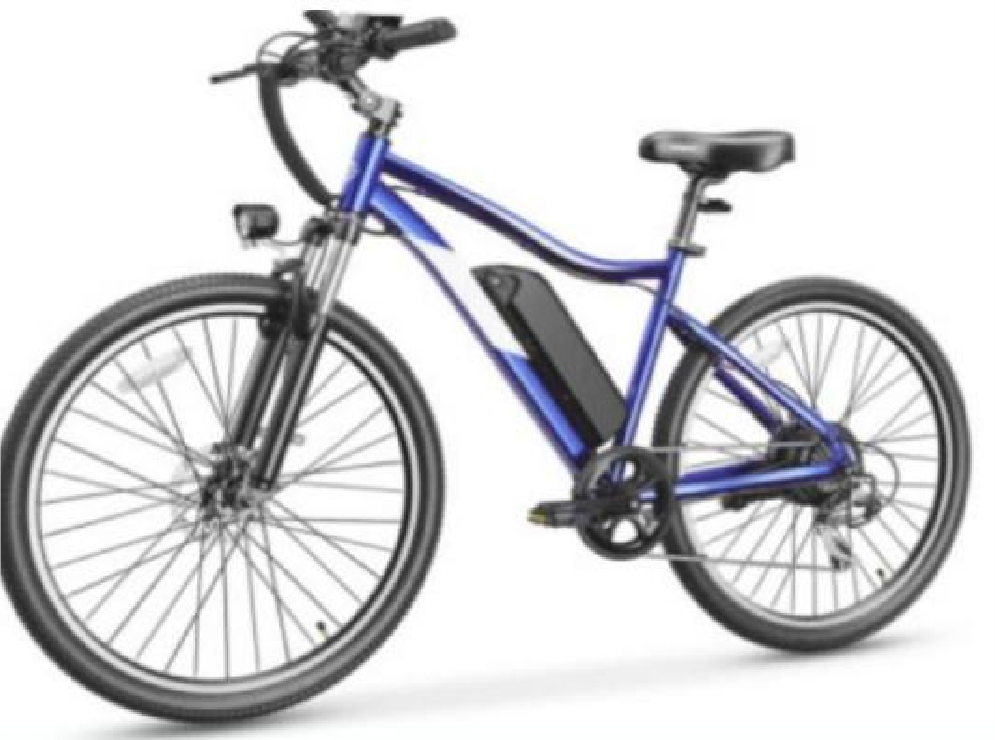

车架Frame

6066 铝合金车架6066 aluminum alloy frame

27.5 寸 ， 电机 350W ，开档依电机图纸 ，片式安装27.5-inch, 350W motor, fork spacing according to motor drawings, plate-mounted.

2

前叉Fork

27,5 山地全铝弹簧减震

27.5-inch full-aluminum mountain bike with spring suspension.

3

车头碗Headset

KLB482

Φ28.6*50*30   H:14 附太阳花上压盖

Φ28.65030, H:14, with sunflower upper cover.

4

垫圈Washer

28.6*10mm

5

中軸力矩Bottom bracket torque

五通

bottom bracket shell

正反牙 ，球架 ，配中轴螺丝 ， 中轴长度 68

Reversed and normal threads, ball cage, with bottom bracket screws, bottom bracket length: 68mm.

6

車把Handlebar

22.2  中间挤凸  31.8  长 ：630mm

22.2 (with middle convex extrusion), 31.8, length: 630mm.

7

把立Stem

F-012

Φ31.8* Φ28.6   100mm

8

把套Handlebar grip

黑色 ，一体硅胶把套

Black, one-piece silicone handlebar grips.

9

鞍座Saddle

运动型鞍座 ，黑弓   Sport-style saddle, black rails.

10

鞍管夹Saddle clamp

黑色 ， 30,4    Black， 30,4

11

鞍管

Seat post

Φ27,2 ， 300 长度 ，带刻度哑黑

Φ27.2, length 300mm, with scale, matte black.

12

脚踏Pedal

LU-984DU

107*96*28MM  2DU  硼钢  塑料 散珠

107*96*28MM  2DU  boron steel and plastic, loose balls

13

刹车类

Brake Category

刹把Brake lever

3520

铝手柄缩仔黑色配 22.2 车把 ，二芯断电线长不含防水插件 270mm(防水线我司提供）

Aluminum handlebar grip (shrunk type, black), suitable for 22.2mm handlebars.

• Two-core broken wire length (excluding waterproof plug): 270mm (waterproof wire provided by our company).

14

碟刹Disc brake

机械碟刹 F/R  碟盤:Φ180  ALLOY  主體烤漆霧黑色分体式安装  附螺丝

Mechanical disc brakes (F/R), disc diameter: Φ180, alloy material, main body in matte black paint, split-type mounting, with screws included.

15

传动类

Transmission Category

齿盘Chainring

1/2 × 3/32"  48T 铁齿+PVC 黑色半罩黑色铝曲柄 170mm9/16"（曲柄飞轮一体）

1/2 × 3/32" 48T iron teeth + PVC black half-cover, black aluminum crankset 170mm 9/16" (crankset and freewheel integrated).

16

链条Chain

Z7

1/2 × 3/32 × 140L  PPO 接头

1/2 × 3/32 × 140L, with PPO connector.

17

輪胎Tire

27,5"*1.75" 电动车用  内外胎 加长美嘴27,5"*1.75" electric bike tire and inner tube with extended Schrader valve.

18

前轮圈

Front rim

27,5” ，铝圈。 13G*36 孔加长美嘴

27,5", aluminum rim. 13G*36 holes with extended Schrader valve.

19

后轮圈

Rear rim

27,5” ，铝圈。 12G*36 孔加长美嘴

27,5”, aluminum rim. 12G*36 holes with extended Schrader valve.

20

衬带Tube

尼龙衬带 27,5     Nylon tube27,5

21

辐条前

Front spokes

13G*黑色 附加长铜头 6mm SUS 4 交叉+编圈

13G black spokes with extended 6mm SUS copper nipples, 4-cross lacing + wheel building.

22

辐条后

Rear spokes

12G长 ，黑色  附加长铜头 6mm SUS 2 交叉

12G long, black spokes with extended 6mm SUS copper nipples, 2-cross lacing.

23

前花鼓

Front hub

3/8*12G*36H *100W 135L 铝： B47F

3/812G36H*100W 135L, aluminum material: B47F.

24

整 车 类

Vehicle Category

前泥板

Front fender

27.5

PVC 材质 ，27.5 寸 ，支棍长度可调

PVC material, 27.5 -inch, adjustable strut length.

25

后泥板Rear fender

PVC 材质 ，27.5 寸 ，支棍长度可调

PVC material, 27.5 -inch, adjustable strut length.

26

停車架Parking rack

26 寸 ALLOY  L215(铆钉到内侧底端面）

26-inch, ALLOY, L215 (from rivet to inner bottom end face)

27

指拨Shifters

三芯转把 ，右手安装

Three-core twist grip, right-hand installation.

28

变 速 类

Transmission Category

变速指拨Gear shifters

ARDM310DLC

七速指拨 ， 山地车分体变速器

7 - speed Trigger Shifter, Mountain Bike Detachable Derailleur

29

飞轮

Freewheel

ASLM3157RC

七速旋飞轮 ，齿比 14,16,18,21,24,28T

7 - speed Freewheel, Gear Ratios 14T, 16T, 18T, 21T, 24T, 28T

30

拨链器Derailleur

AMFTZ5007428

七速后拨链器 ， 山地车通用 ，黑色

7 - speed Rear Derailleur, Universal for Mountain Bikes, Black

31

变速线Shift cable

SP

1890MM

32

前刹车线Frontbrake cable

SP

1000MM

33

后刹车线Rear brake cable

SP

1700MM

34

轮反光片

Wheel

XPJ-4402-02,反射器,美标 +车把反光 ，后反光 4 个

XPJ-4402-02, Reflectors, US Standard + Handlebar Reflectors, Rear Reflectors, 4 pcs.

35

电  器 类

Electrical Appliance Category

电机Motor

750W

27.5 寸无刷高速有霍尔，负载 25KM/H 以上 ， 48V/750W Φ 12 × 12G × 36H × 190*260 黑色外壳大九芯防水线 出线长 ：250+950MM压端子 SM-6A（1 ：红 2 ：黄 3 ：蓝 4： 绿 5 ：黑 6： 白） ，外 7 速旋飞 碟刹内置速度 1 粒磁钢

27.5-inch brushless high-speed motor with hall sensor, load speed over 25KM/H, 48V/750W.

Dimensions: Φ12×12G×36H×190*260, black casing.

9-core large waterproof cable outlet, length: 250+950MM, crimped terminal SM-6A (1: red, 2: yellow, 3: blue, 4: green, 5: black, 6: white).

External 7-speed freewheel, disc brake, built-in 1 magnetic steel for speed sensing.

36

控制器

Controller

48V

2 号协议 正旋波 9 管控制器 25A 电流  功能要求 ：转把：转把不受档位控制 助力：0-5 档开机默认 1 档   前后灯由 多功能开关控制出大灯线 尾灯线

2nd protocol, sine wave, 9-tube controller, 25A current.

Functional requirements:

• Throttle: Uncontrolled by gear positions.

• Pedal assist: 0-5 gears, defaulting to gear 1 on startup.

• Front and rear lights: Controlled by a multi-function switch, with headlight and taillight wires.

37

仪表Meter

P6

2 号协议 LCD 液晶面板   48V    线长： 300 ㎜   不含防水插 件 0-5 档,开机默认一档黑色带 USB 充电孔

Protocol 2: LCD liquid crystal panel

48V wire length: 300 mm

Without waterproof plug-in

0-5 gears, default to gear 1 when powered on

Black with USB charging port

38

速度传感

Speed sensor

一体式 ，左侧安装，

Integrated Type, Left-side Installation

39

大灯Headlight

分体式支架安装，

Split-type bracket installation

40

电池盒Battery box

海龙

Hailong

山山电池盒 ， 18650 电芯 ，含支架 ，带控制器盒

Shanshan battery box, 18650 battery cells, including bracket, with controller box.

41

电池Battery

48V12.5AH

电芯 21700 配佳能二号电池盒充电孔 DC2.1 配放电线长 400mm 正负 4.0 子弹公头 负 ：4.0 子弹母头

Cell: 21700  With Canon No.2 battery box, charging port: DC2.1  Discharge wire length: 400mm  Positive: 4.0 bullet male connector  Negative: 4.0 bullet female connector

42

充电器

Charger

锂电充电器輸出48V/2A 充电口 DC2.1  电源插头 UL

Lithium battery charger:

• Output: 48V/2A

• Charging port: DC2.1

• Power plug: UL certified

43

辅 料 类

Auxiliary Material Category

总成线

Assembly wire

一托四

One-to-four.

功能要求 ：仪表 ，刹把 ，转把 上方出线不含防水插件

Functional requirements:

• Instruments, brake levers, throttles

• Cable outlet above the components (excluding waterproof plugs)

44

仪表线

Instrument cable

HT-F-Z509BG 五芯线长

HT-F-Z509BG five-core wire length.

45

刹把线

brake lever cable

HT-F-Z209BG 二芯线长

HT-F-Z209BG two-core wire length.

46

指拨线

Trigger shifter cable

HT-F-Z309BG 三芯线长

HT-F-Z309BG three-core wire length.

47

水标

Water decal

水标  单套： 5.5 +开模  500

Water decal:  Single set: 5.5 + mold opening fee 500

48

说明书

Instruction manual

全英文版  按客户要求制作（含排版）

Fully in English, produced as per customer requirements (including typesetting).

49

小五金ardware

见附表 1  Refer to Schedule 1.

50

烤漆Paint

电池盒+车架,2 遍底漆

Battery box + frame, two coats of primer.

51

扎带（小）Small cable ties

4*100

52

C 型线卡C-type cable clips

53

胶带Tape

50*1000

54

珍珠棉Pearl cotton

1100*10

55

小内盒Small inner box

长宽高 150*150*125

Length, width and height150*150*125

56

纸箱Carton

不含开版费

Excluding plate-making fee.
